DG102-P

home / product range / Double mitre saws

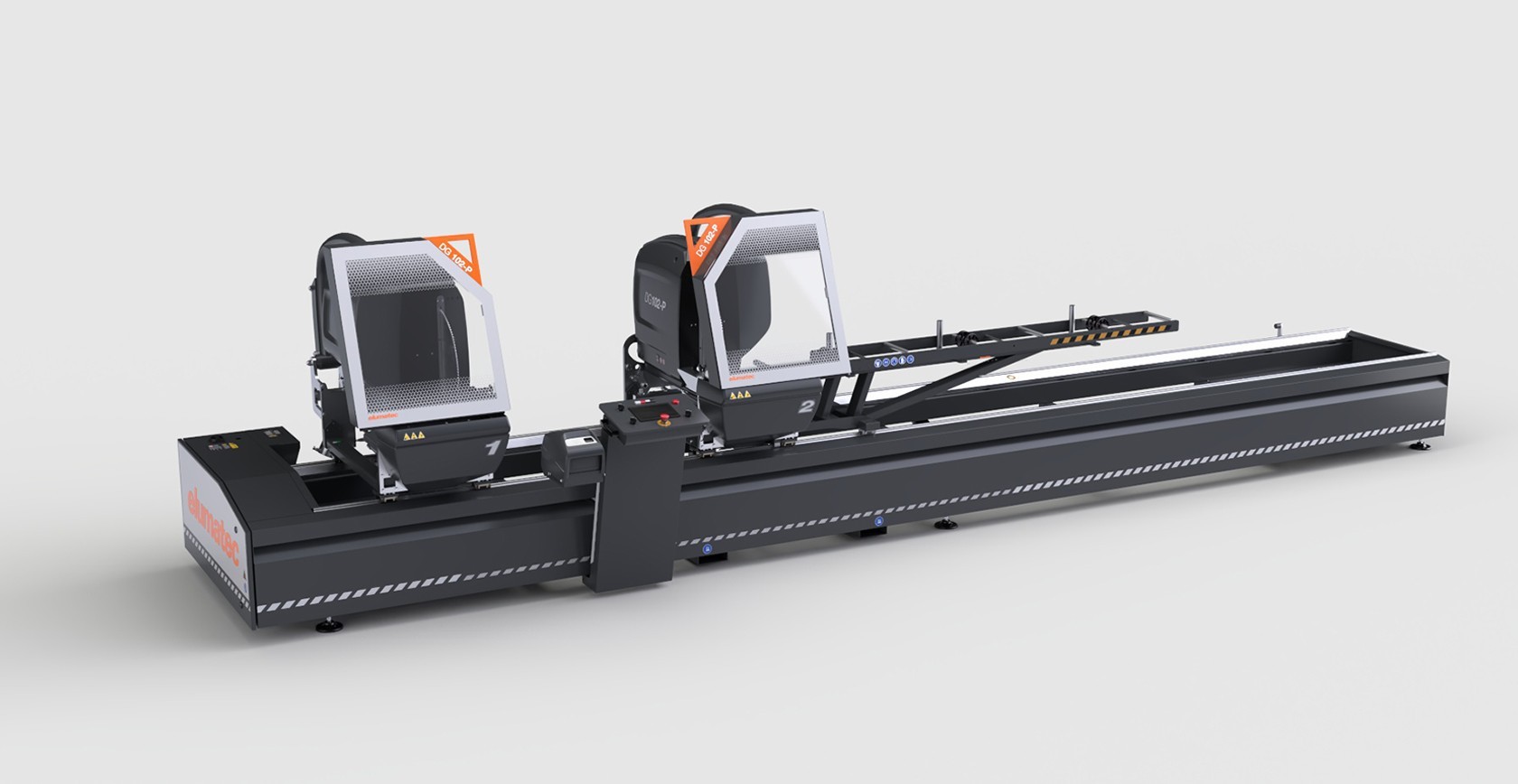

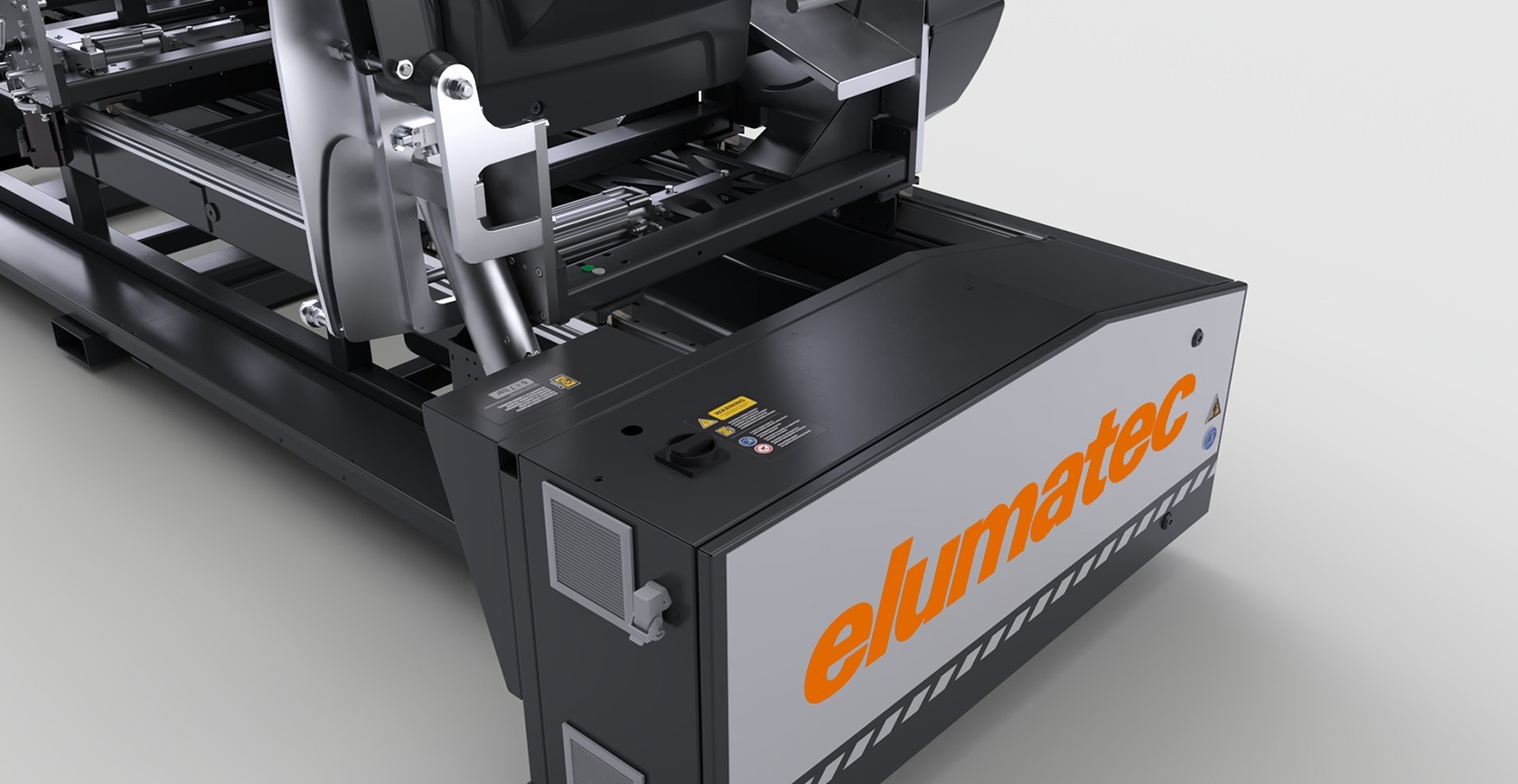

Double mitre saw with automatic length adjustment of the moving head by brushless motor. Pneumatic tilting of the sawing unit from 90° to 45° or 22°30' by two fixed positions. Optionally with mechanical adjustment of the intermediate angle. Hydropneumatic saw blade feed.

Request quote

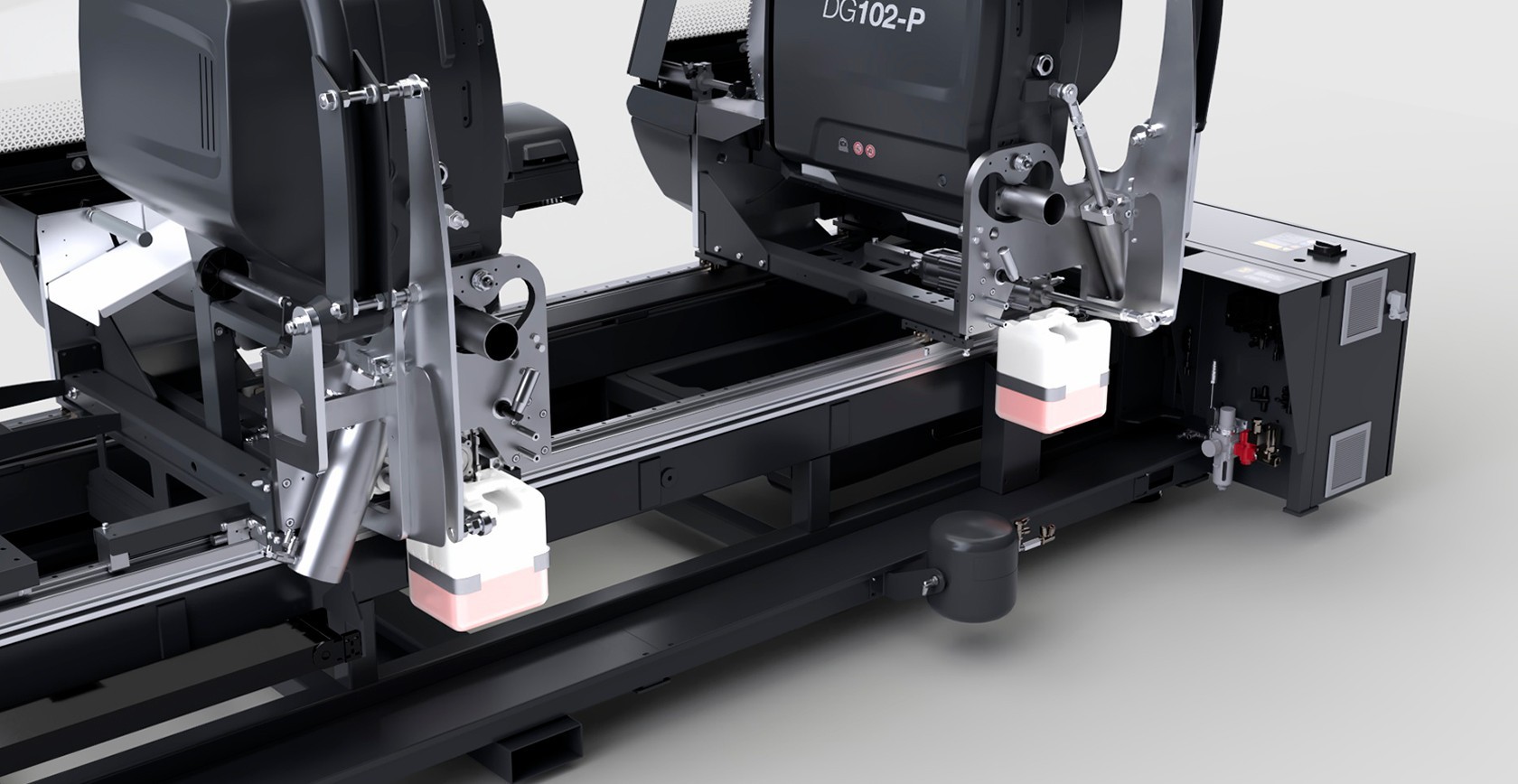

Profile clamping

Reliable, precise profile clamping using two horizontal clamping cylinders. If vertical clamping is required, this is carried out with a special horizontal clamping system. A manually positionable additional clamp holds the remaining piece during cutting.

Protective hoods for sawing units

Two automatic protective hoods on the sawing unit protect the processing area. They are made of scratch-resistant polycarbonate and are opened and closed automatically according to the cutting cycles.

Loading and unloading

The double mitre saw has a roller conveyor on the movable saw unit for standard loading and unloading. As an option, an additional clamping device for clamping the remaining bar can be installed on the roller conveyor. An optional device for measuring the profile height enables the automatic correction of the cutting dimension according to the actual dimensions of the profile.

Control system

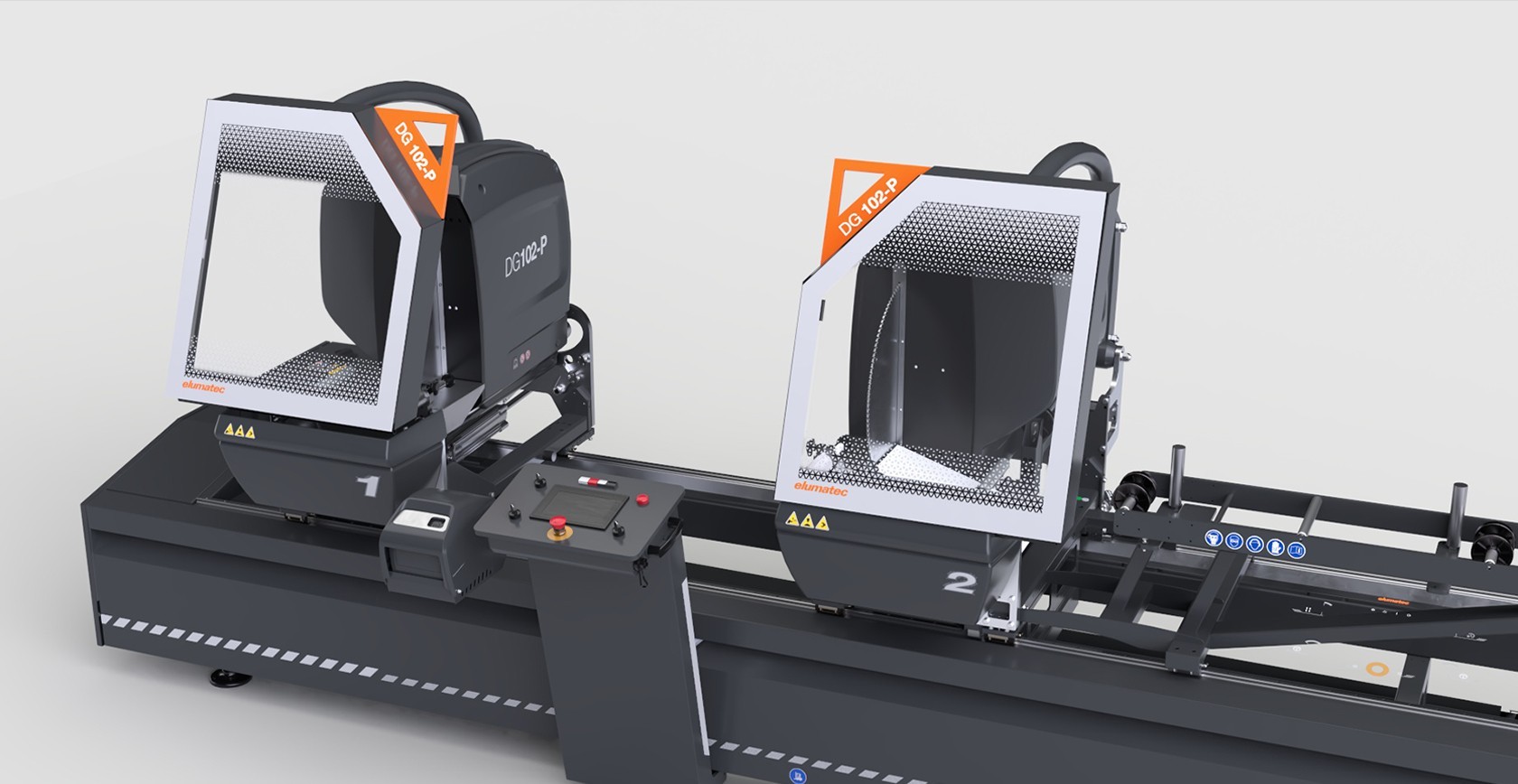

The pedestal mounted control panel is connected to the machine bed and can be positioned individually. The saw has the proven elumatec HMI with 7-inch touchscreen display. Single cuts and automatic mode with cutting lists are possible.

Intermediate tilting adjustment

The standard version allows performing cuts at 45° and 22°30' by mechanically presetting the end stops. An optional system is provided for tilting manual adjustment of cutting units to any intermediate angles by means of a manual handwheel, which is particularly useful when performing out-of-square cuts.

Technical data

MACHINE CHARACTERISTICS

X axis positioning speed (m/min)

Electronic positioning of the X axis

Mobile head position with absolute magnetic strip direct measuring system

Pneumatic head tilting

Hydropneumatic saw blade feed

Cutting length (mm)

5.000

Carbide sawblade

Saw blade diameter (mm)

550

Saw blade motor power (kW)

2,2

Electronic profile hight messure system

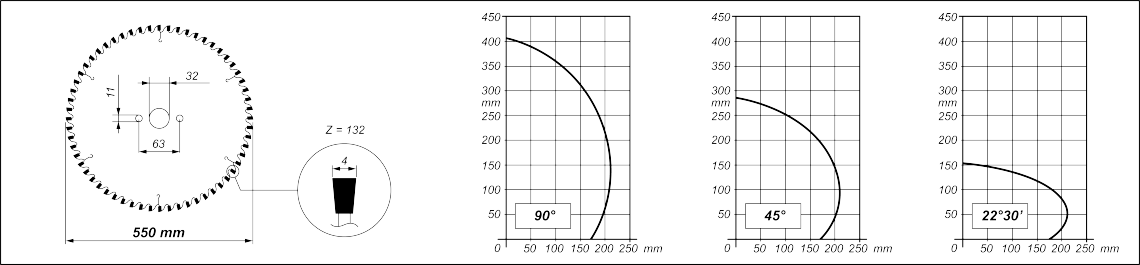

CUTTING DIAGRAM

SAFETY DEVICES AND PROTECTION

Pneumatically controlled safety hood

PROFILE POSITIONING AND CLAMPING

Pair of horizontal pneumatic clamps with "low pressure" device

Special clamps for vertical clamping

Pair of additional horizontal clamps

Manually positioned profile support

Roller conveyor on mobile head (mm)

2.000

Additional clamp for mobile roller conveyor

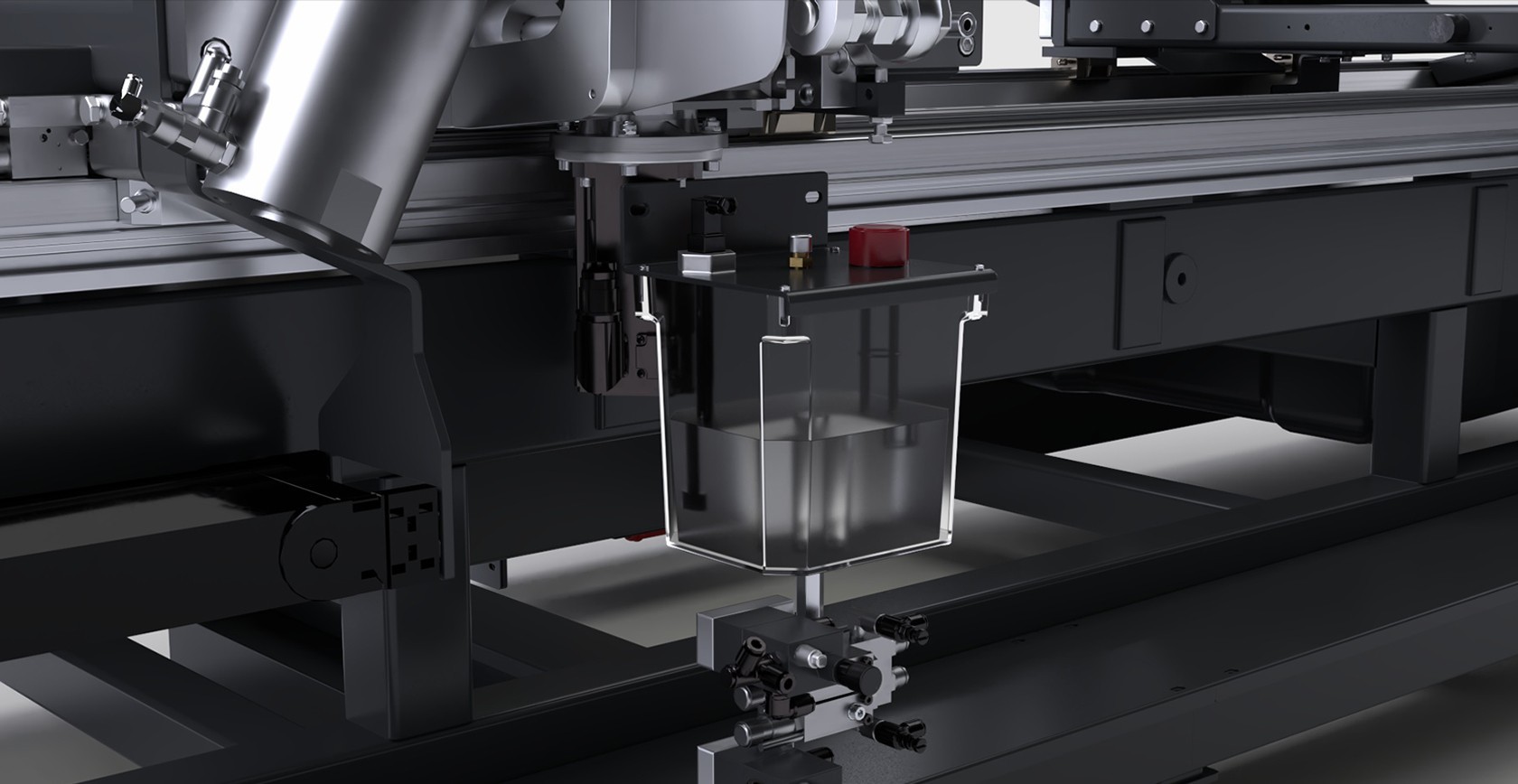

LUBRICATION AND SUCTION

Microspray-system

Preparation for external exhauster

Chip trays

Scraper conveyor for chip removal

FUNCTIONS

Single cuts

Intermediate angles cuts

Cutting lists

Special cut functions

Included

Available
