Gasket trolley

home / product range / Gasket trolleys

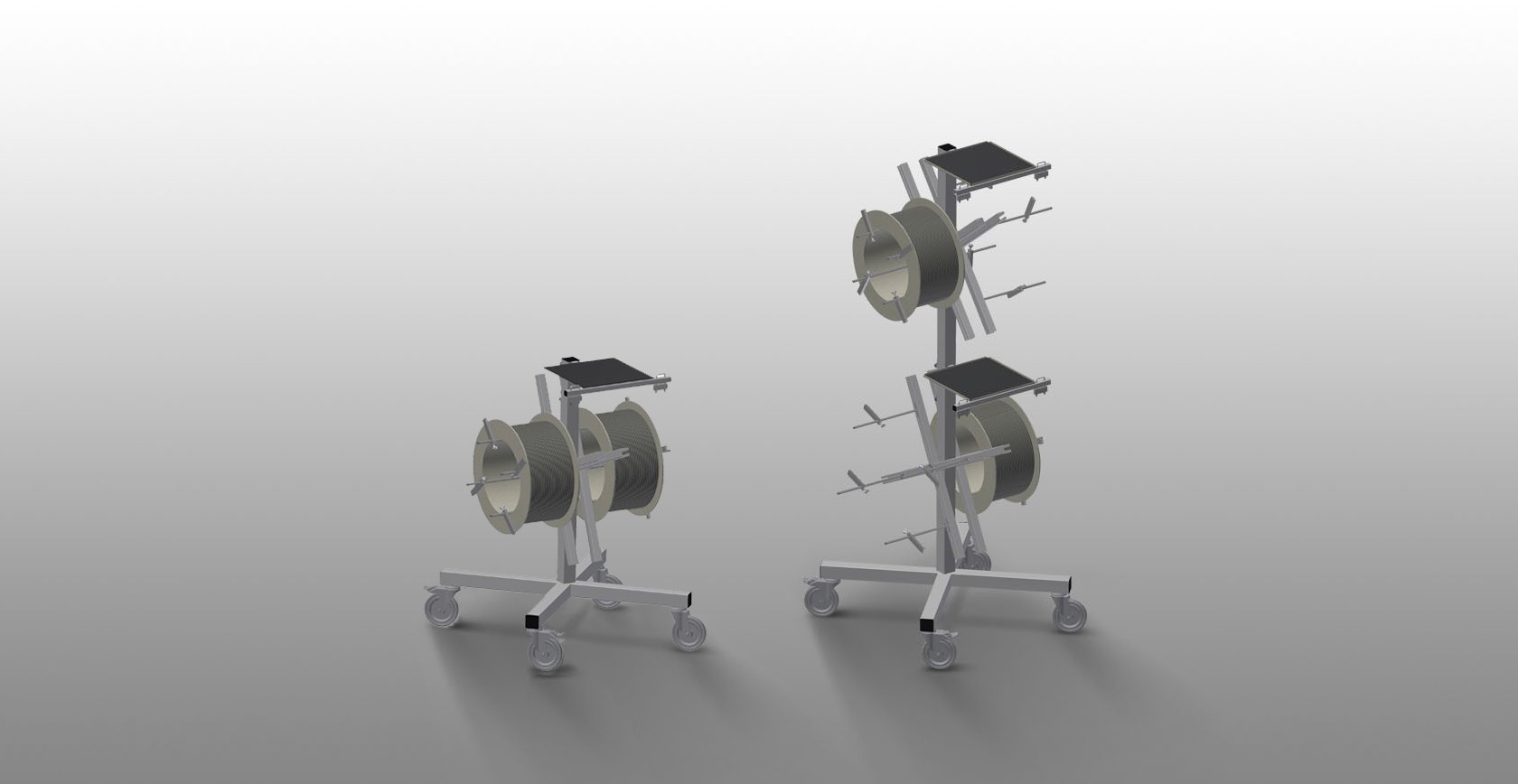

Gasket trolley for gasket reels. Stable steel construction. 2/4 reel mounts, according to model. Indispensable for gasket insertion. Adjustable for any reel diameter. Tool tray. Four swivel castors, two of which with locking stop.

Casters
Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling
Reel mounts DW 2

For two gasket reels. Mounts adjustable for any reel size.

Reel mounts DW 4

For four gasket reels. Mounts adjustable for any reel size.

Storage area for tools
Practical tool tray located at working height
Unwinding brake
Unwinding brake for each reel
Gasket trolleys DW Casters elumatec
Gasket trolleys DW Reel mounts DW 2 elumatec
Gasket trolleys DW Reel mounts DW 4 elumatec
Gasket trolleys DW Storage area for tools elumatec
Gasket trolleys DW Unwinding brake elumatec
Technical data arrow_drop_down

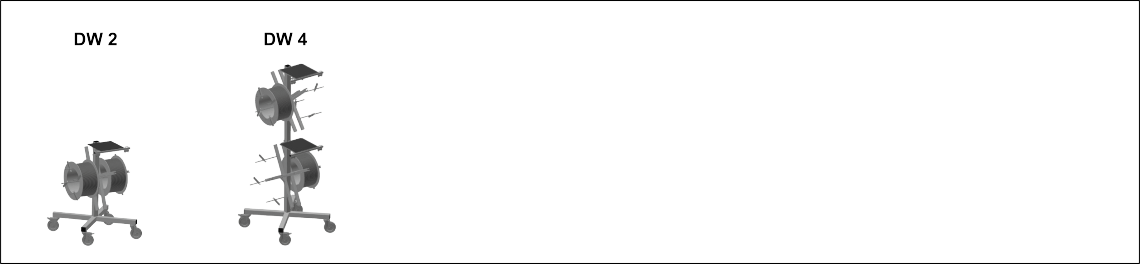

MODELS

DIMENSION AND WEIGHT

DW 2 / DW 4

Length (mm)
700
Width (mm)
700
Height (mm)
1.005 / 1.870
Weight (kg)
25 / 40
CHARACTERISTICS

DW 2 / DW 4

Reel holder
2 / 4
Maximum reel diameter (mm)
750
Maximum reel width (mm)
250
Swivel castors
4
Swivel castors with locking stop
2
Swivel castors diameter (mm)
125
Included
Available
