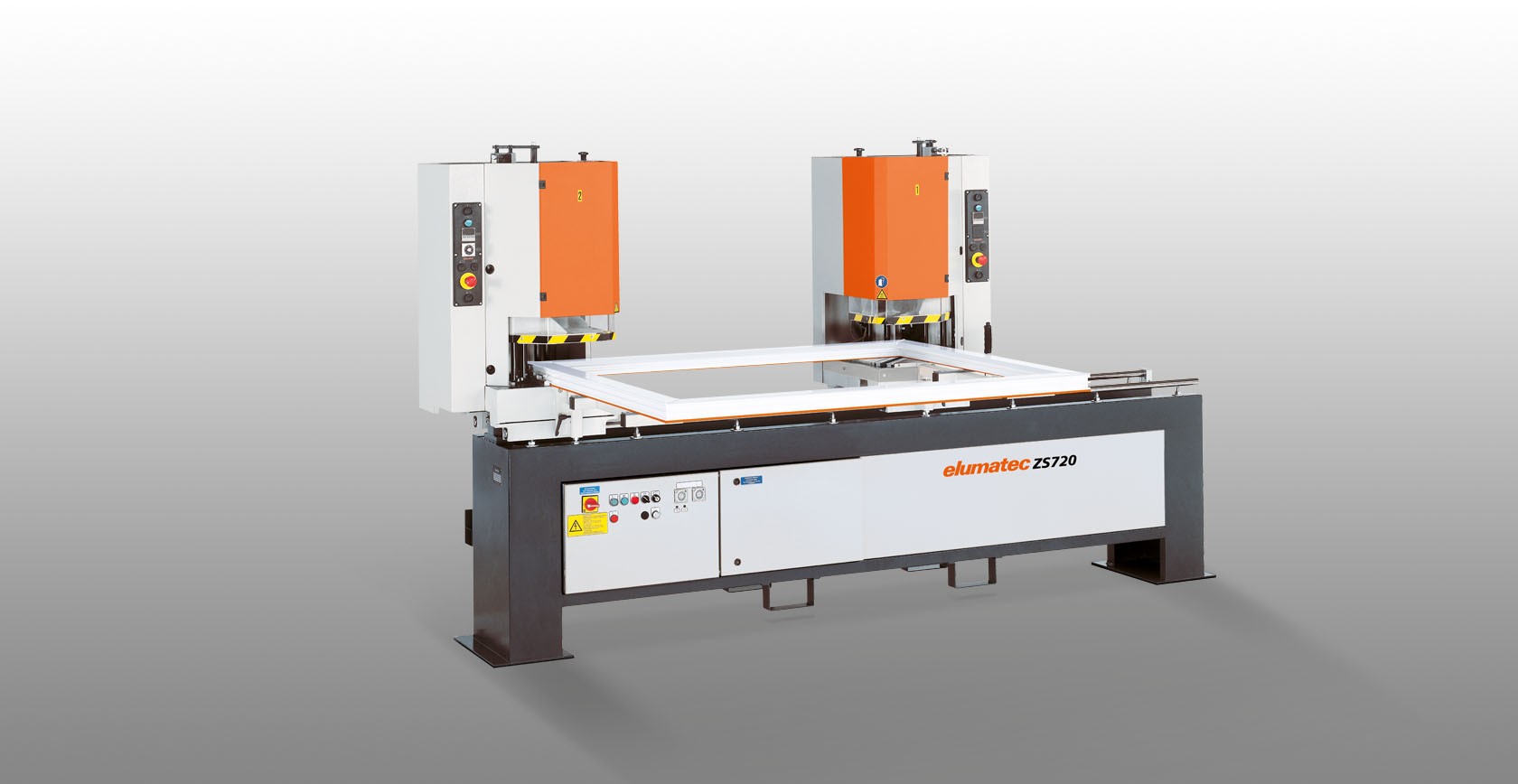

ZS 720 LV 2-head welding machine
home
/
from a to z
/
Z
Description
Technical data
Fixed L-head (90°)
Variable L-head (30° – 180°)
Continuously adjustable stops make it possible to weld any angle from 30° – 180°

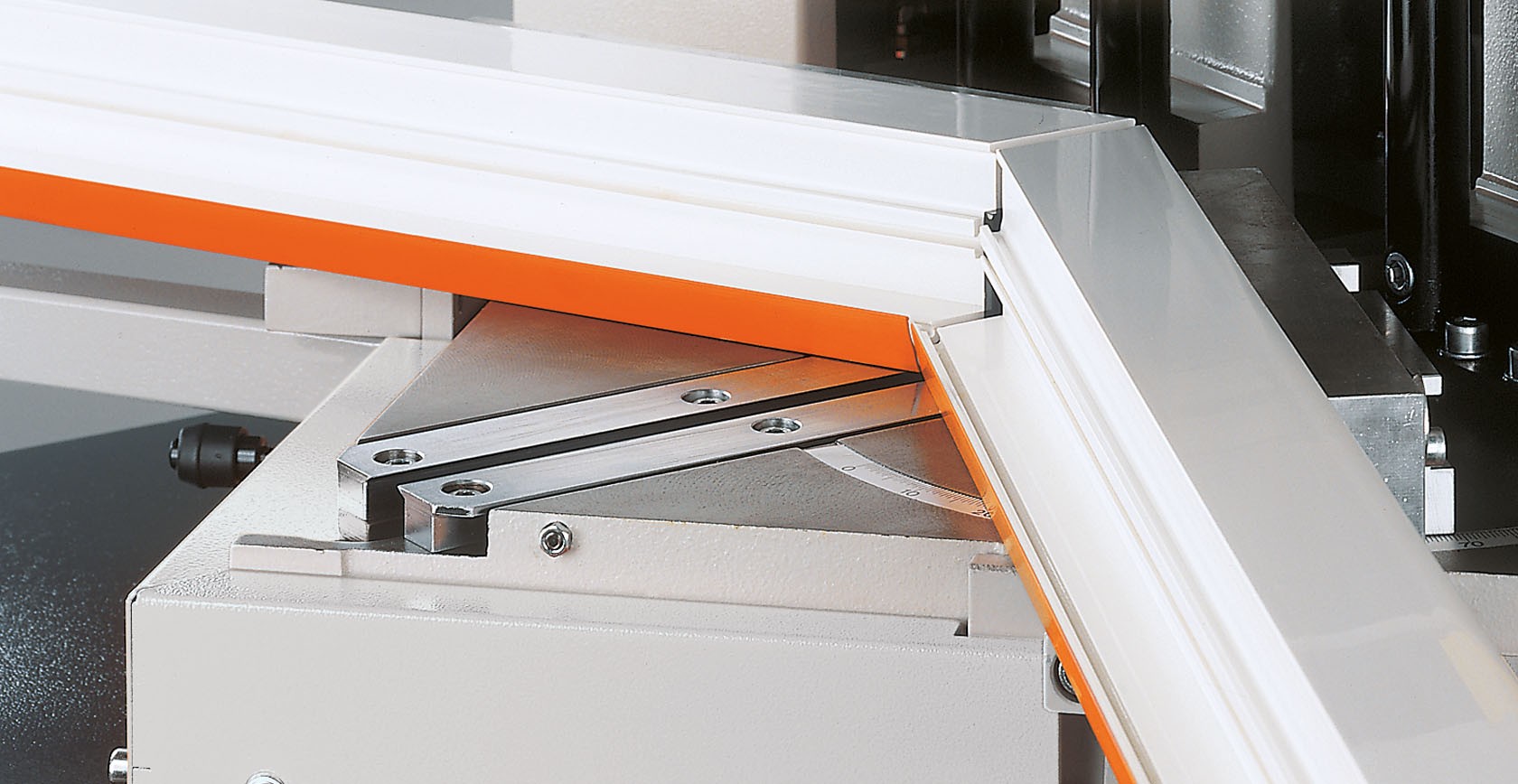

Heated welding bead limiting blade, configurable for a welding bead limitation of 0.2 to 2.0 mm, for welding profiles covered with a film or acrylic coating
Also suitable for welding large-volume profiles (monobloc)
Automatic adjustment for different profile cross-sections by means of a sensor-controlled melting time
Easy maintenance, e.g. through simple cleaning of the welding plates, special clamping springs for fast Teflon film changing
Changing the profile stop plate for different melting losses is easy (standard, 6 mm)
Corrosion-resistant welding carriage guide
Height-adjustable support arms included as standard
Options
Gasket downholder for the inside corner area
Welding supports
Welding supports for profiles with gasket already installed
Profile stop for small frames (melting loss) results in smallest frame dimension, 300 mm
Support arms
Two L-plates
Width of L-plate 340 mm
Height of L-plate 300 mm
Profile width at 90° max. 180 mm
Profile width at 180° max. 220 mm
Profile height max. 210 mm
Profile height min. 40 mm
Profile height with special adapter min. 20 mm
Profile length max. 2,520 mm (special lengths optional)
Smallest frame dimension 480 mm
Power supply 230/400 V, 3~, 50/60 Hz
Power output 5.2 kW
Compressed air supply 6 – 8 bar
Air consumption per weld 120 l
Length 3,265 mm, depth 750 mm, height 1,800 mm, weight 950 kg
